吸鋁管定制鋁錠模鋁錠鑄模陽極鋼爪
消失模鑄造電解鋁氧化鋁用吸鋁管
吸鋁管吸鋁管是電解鋁廠各種類型抬包（包括敞口抬包和真空抬包）上的易損備件。
工作原理
工作時，吸鋁管插電解鋁槽的鋁液里，利用虹吸原理，鋁水被吸入到抬包中。
組成與結構
優點
抬包吸鋁管的價格低廉和耐腐蝕、耐熱材料的優良性能結合起來，能有效延長吸鋁管的使用壽命，同時，其制作工藝簡單，材料成本低，因此該吸鋁管具有很高的性價比。
技術參數
特性表面質量好、缺陷少、使用壽命長
材質Ht200
規格3T、5T、6T、7.5T 10T 12T 15T
應用適用于電解鋁廠3T、5T、6T、7.5T 10T 12T 15T 真空包或依圖紙加工

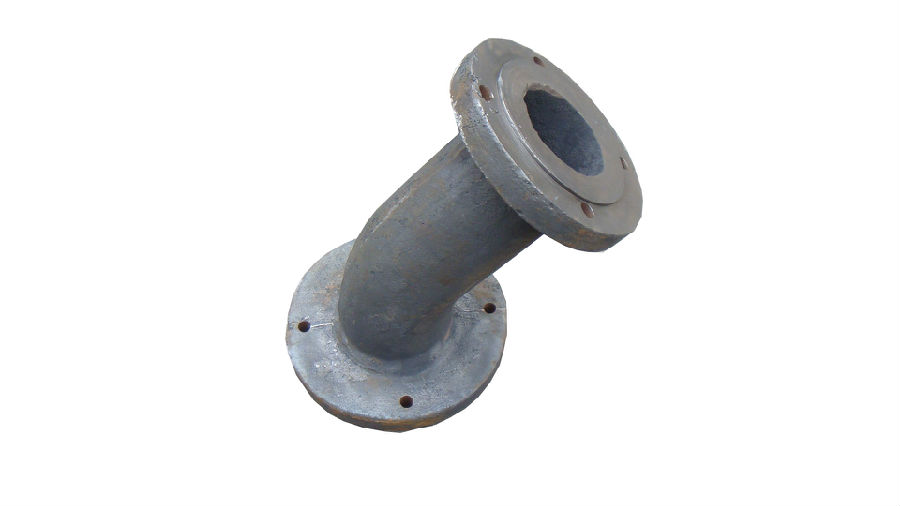

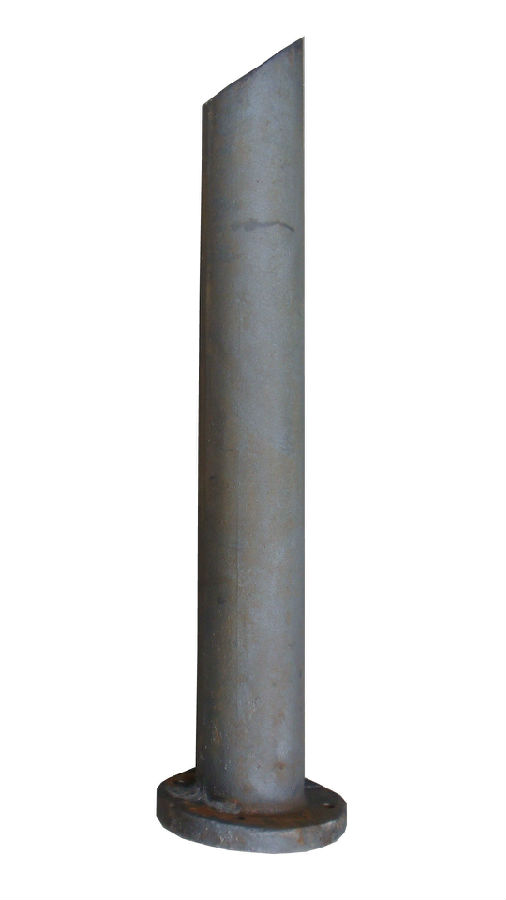

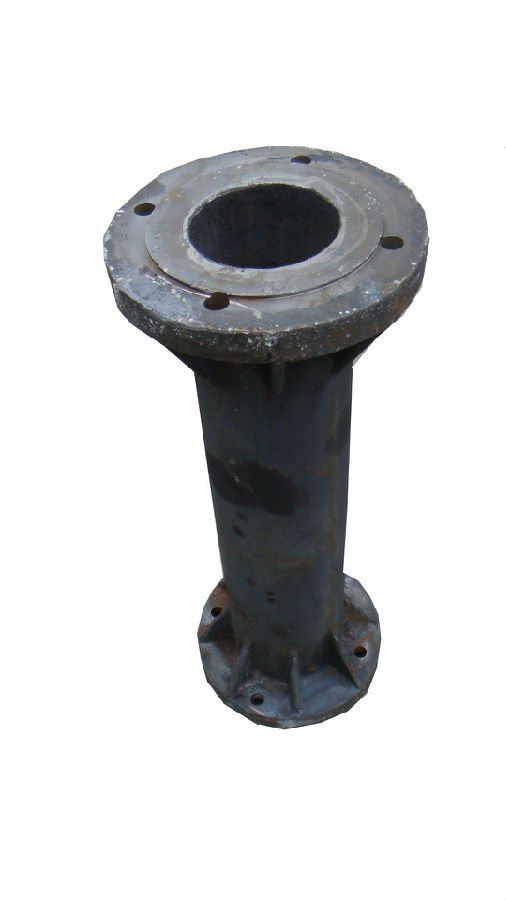

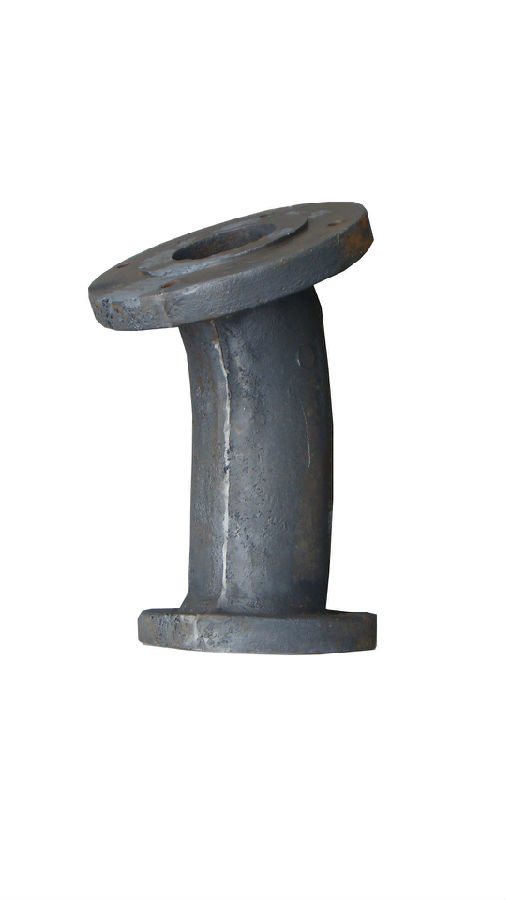

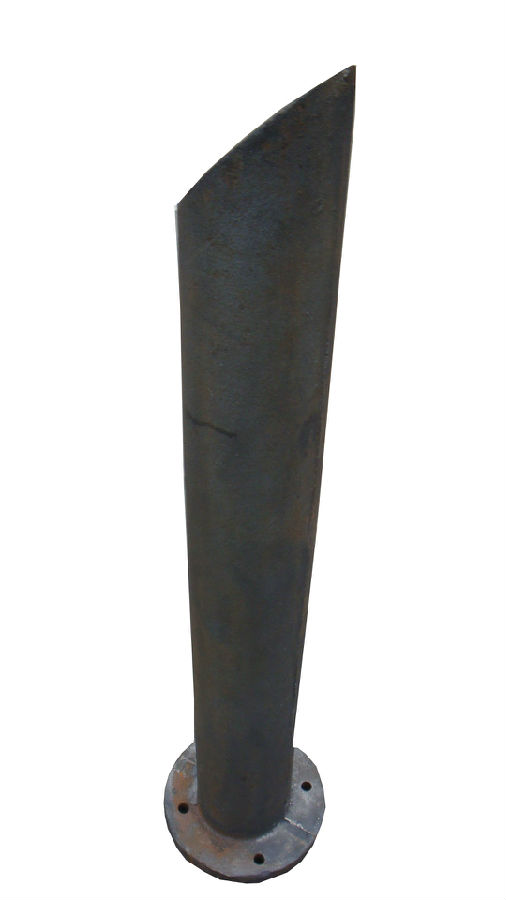

Aluminum suction pipe & Heat resistant aluminum suction pipe & aluminum suction tube for electrolytic aluminum and alumina
Aluminum suction tube is vulnerable spare part on various types of lifting bags (including open lifting bags and vacuum lifting bags) in electrolytic aluminum plant.
Aluminum suction pipe is inserted into the aluminum liquid in the electrolytic aluminum cell. Using the siphon principle, the aluminum water is sucked into the lifting bag.
low price and excellent performance and corrosion-resistant and heat-resistant materials can effectively prolong the service life of the aluminum suction pipe.
At the same time, the aluminum suction pipe has the advantages of simple manufacturing process and low material cost performance.
Good surface quality, few defects and long service life
material QT500
It is applicable to 3T, 5T, 6T, 7.5T, 10T, 12T and 15T vacuum bags in electrolytic aluminum plant
